Meshtastic LoRa Device

LoRa (short for Long Range) is a wireless communication method that allows devices to send small messages over several kilometres while using very little power. Instead of relying on mobile networks, Wi-Fi, or the internet, LoRa devices communicate directly with each other using radio waves on unlicensed frequencies. Because the signal spreads across a wide frequency pattern (a technique called chirp spread spectrum), it can travel much farther and pass through obstacles better than many typical short-range radios.

A Meshtastic device uses LoRa to create a mesh network. Each device acts like a small relay station: when one device sends a message, nearby devices receive it and can pass it along to others. The message can hop from device to device until it reaches its destination, allowing communication across large areas without needing cellular coverage or internet access.

Meshtastic LoRa devices are commonly used for off-grid communication, outdoor activities, emergency preparedness, events, and experimenting with decentralized networks. Each device becomes part of the mesh, helping extend the network while sending and receiving messages.

This device operates within the 862–930 MHz frequency range, which is part of the licence-free Industrial, Scientific and Medical (ISM) radio bands used for LoRa communication around the world. These lower radio frequencies are particularly effective for long-range communication because they travel farther and penetrate obstacles such as buildings, trees, and terrain more easily than higher-frequency signals. The exact operating channel used by the device can be configured through the Meshtastic software to match the regional settings required in your area, ensuring reliable performance while remaining within local radio regulations.

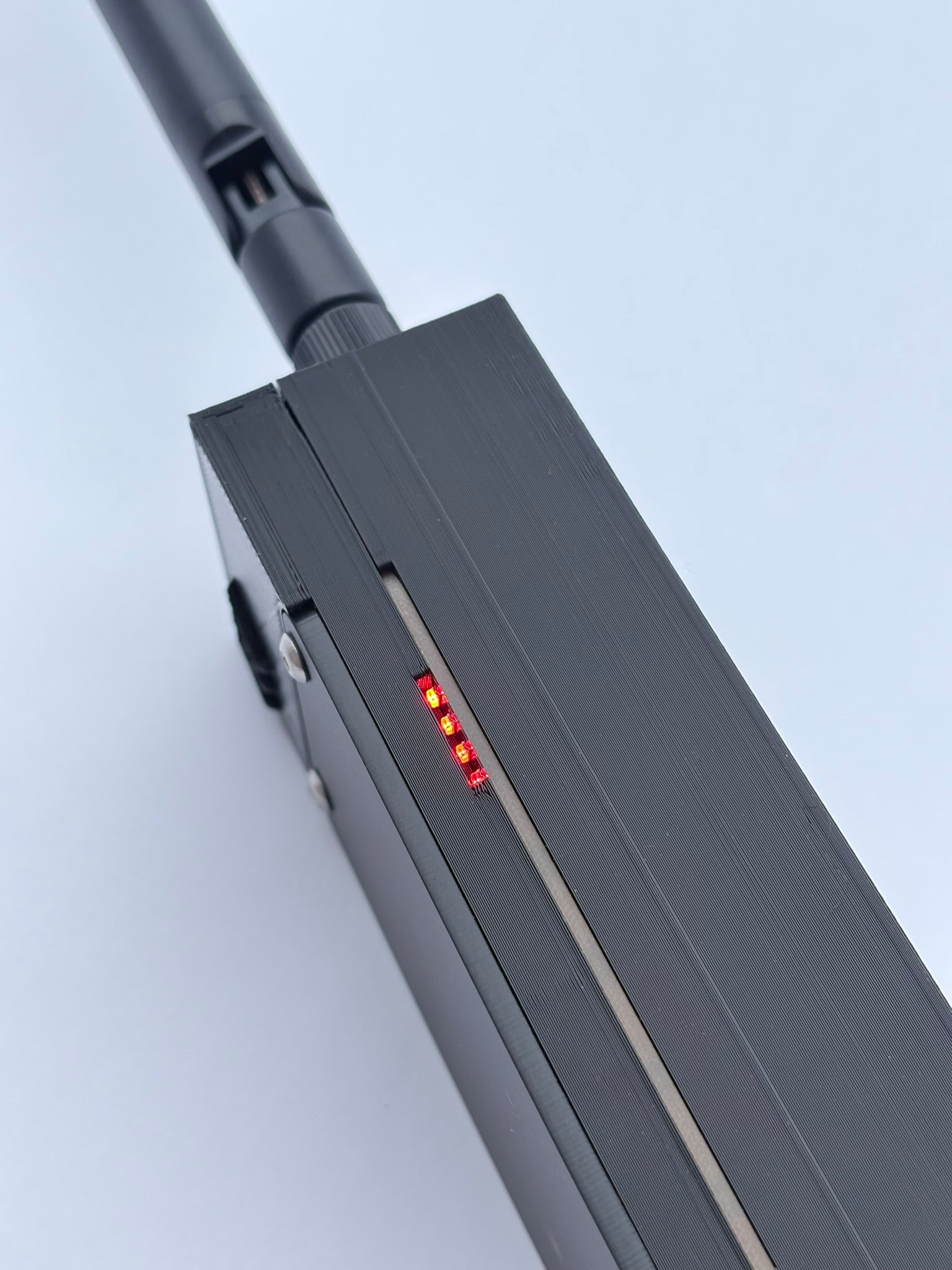

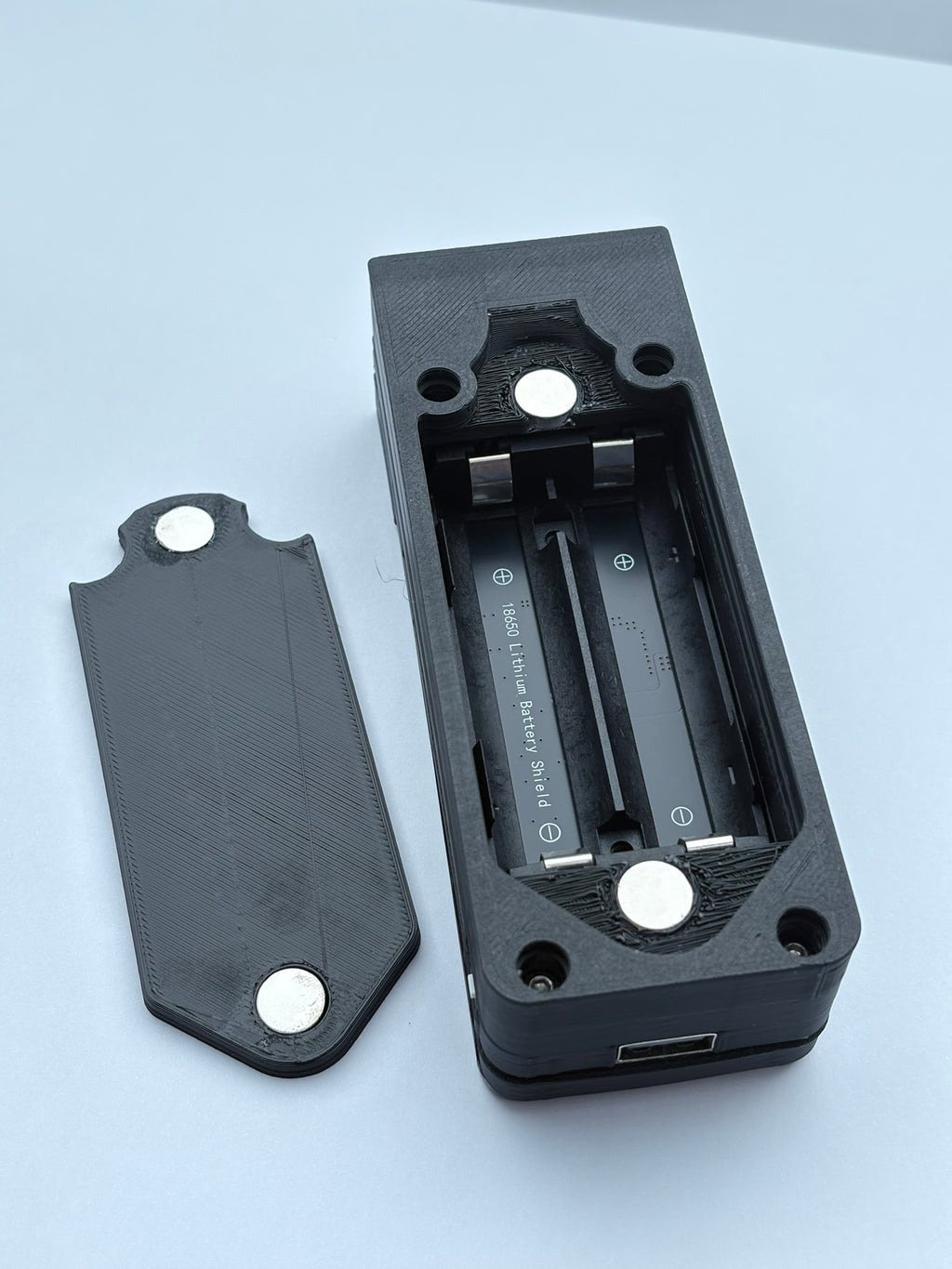

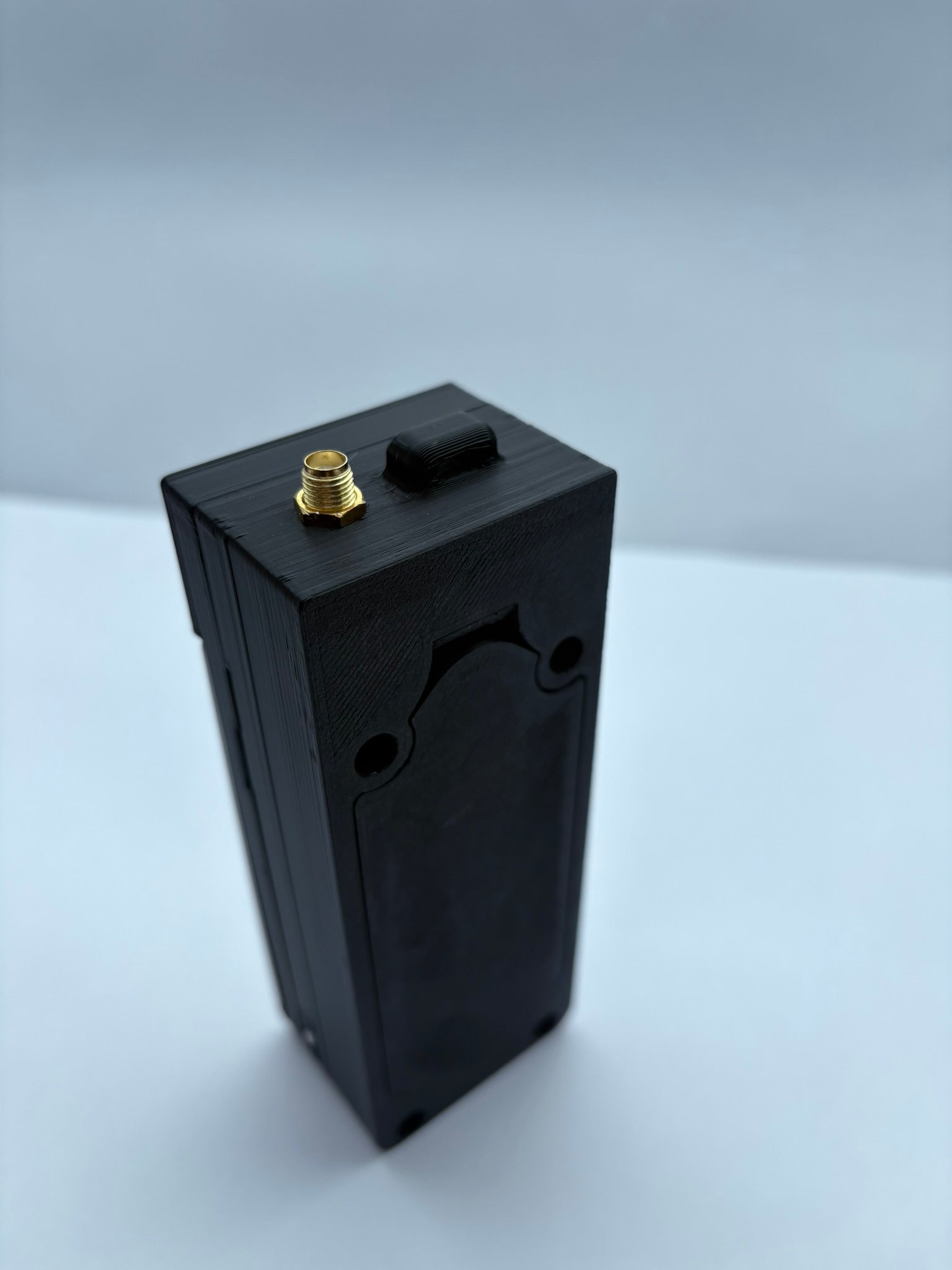

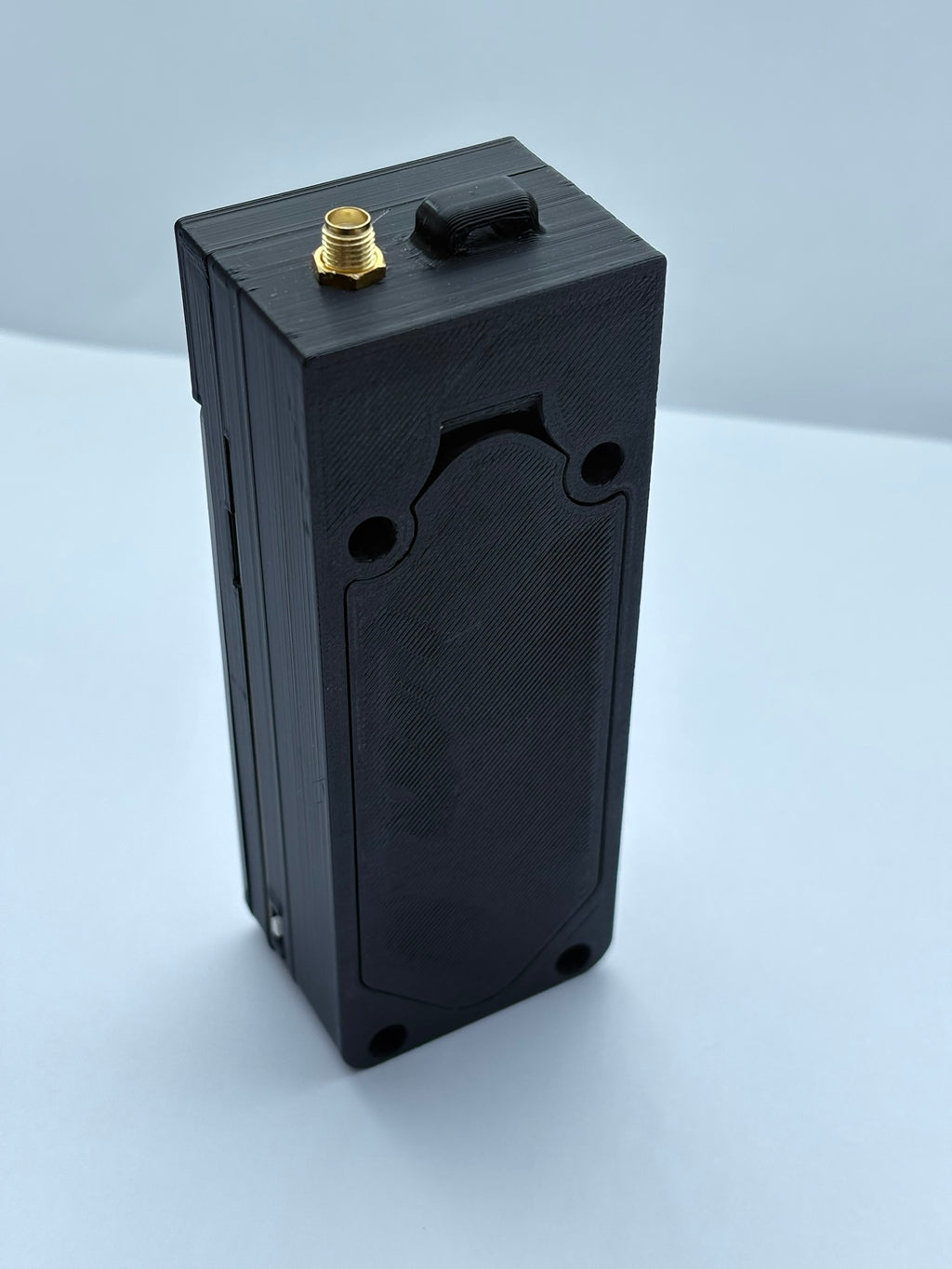

The NoppitLabs Meshtastic LoRa Device is a ready-to-use communication node designed to get you on the mesh network quickly and easily. Simply insert two 18650 batteries, power it on with a single press of the side button, and the device is ready to connect.

The unit contains a built-in Meshtastic radio that connects to your phone via Bluetooth. Any smartphone that supports Bluetooth and the Meshtastic app can pair with the device. Initial pairing uses the PIN 123456, after which the device can be configured and customised to suit your preferences directly through the app.

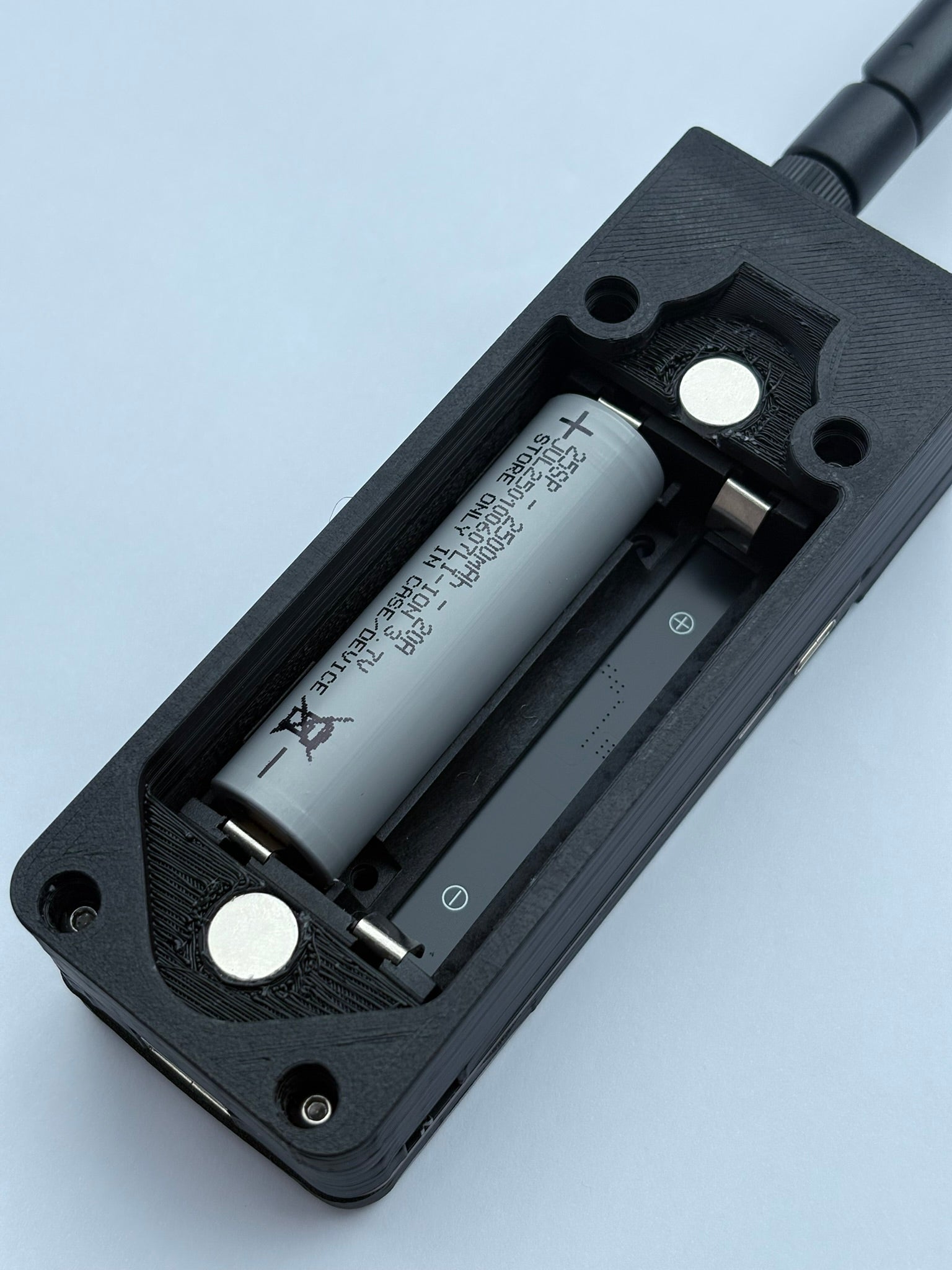

This device is built with practicality and reliability in mind. With two 18650 cells installed, it can run for up to 30 hours, making it suitable for long outdoor trips, events, or emergency use where power may be limited.

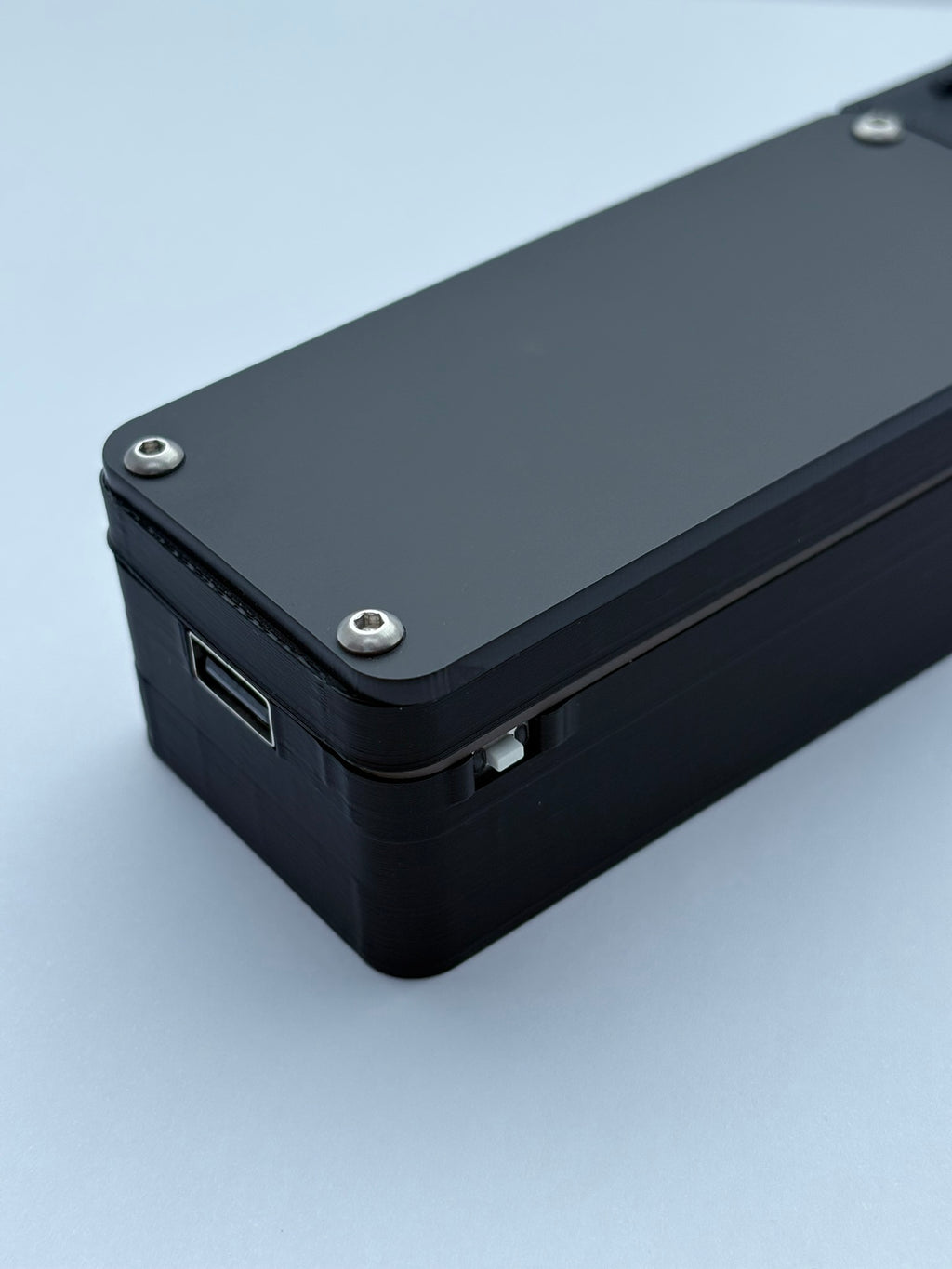

Charging and power management are flexible. The device includes two charging ports:
• USB-C for fast charging
• Micro USB for standard charging

A built-in battery management switch allows you to choose how the batteries behave. You can either allow the cells to fully discharge, or you can set them to stop at a safer minimum voltage to help protect battery health (this is the mode which will be set automatically when it is shipped.

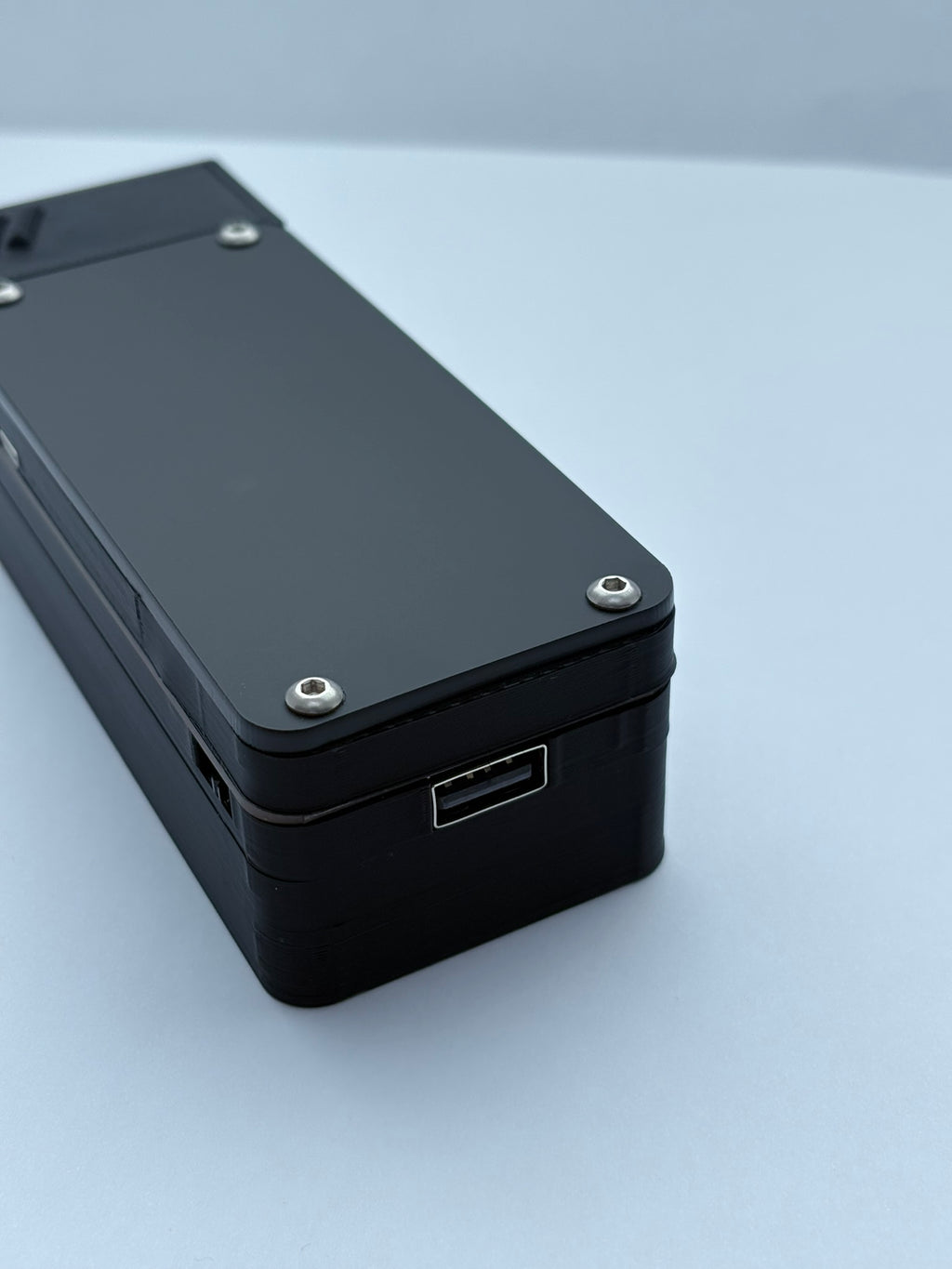

The device also features a USB output port, allowing it to act as a power bank so you can charge your phone or other USB devices when needed.

Altogether, this creates a compact, versatile LoRa communication device that is simple to set up, highly portable, and useful both for messaging and as a backup power source when you’re away from traditional networks.

What's in the box:

• LoRa Meshtastic device

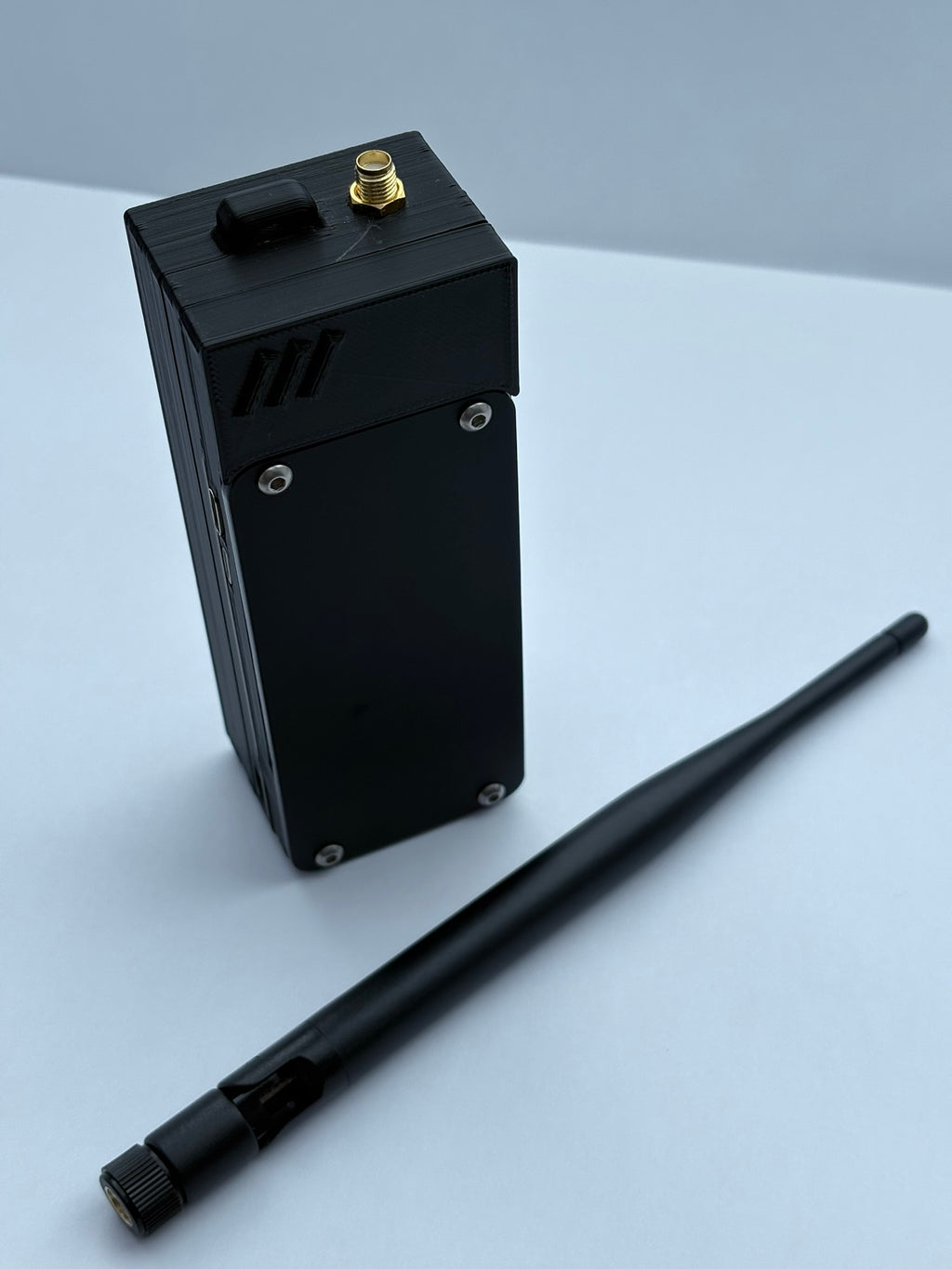

• External SMA Antenna

Batteries are not included.

Attributions to Meshtastic
